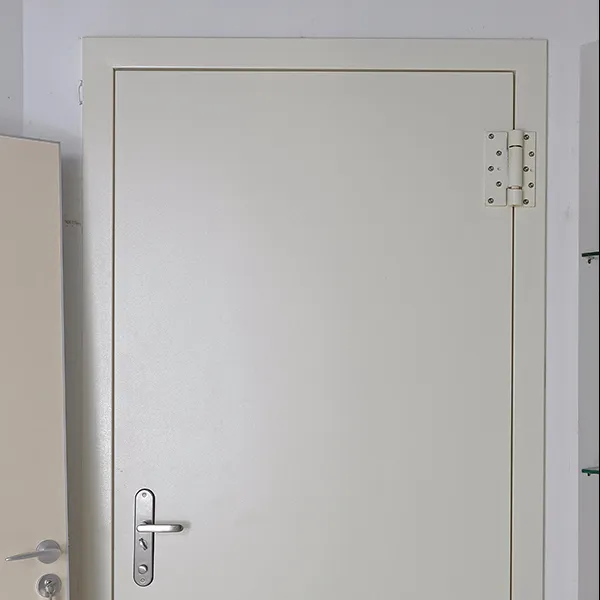

Latest design blast proof steel explosion proof doors

Description Specs & Details

Description

DESCRIPTION

Introduce our Blast proof door in one sentence: we put 1kg TNT about 80" inches away from our door and then blow up, Our door will still work in normal.
Below are more details of our blast proof door:
1. Certificate:  ISO9001 & GB17565-2007
2. Shock wave resistant  is over 69Kpa
3.Door panel sheet is 1.5mm Galvanized Steel;
Inner structure & Filling: 1.5mm galvanized steel square pipe and honeycomb( The distance between two pipe is less than 150mm) Door panel Thickness: 70mm

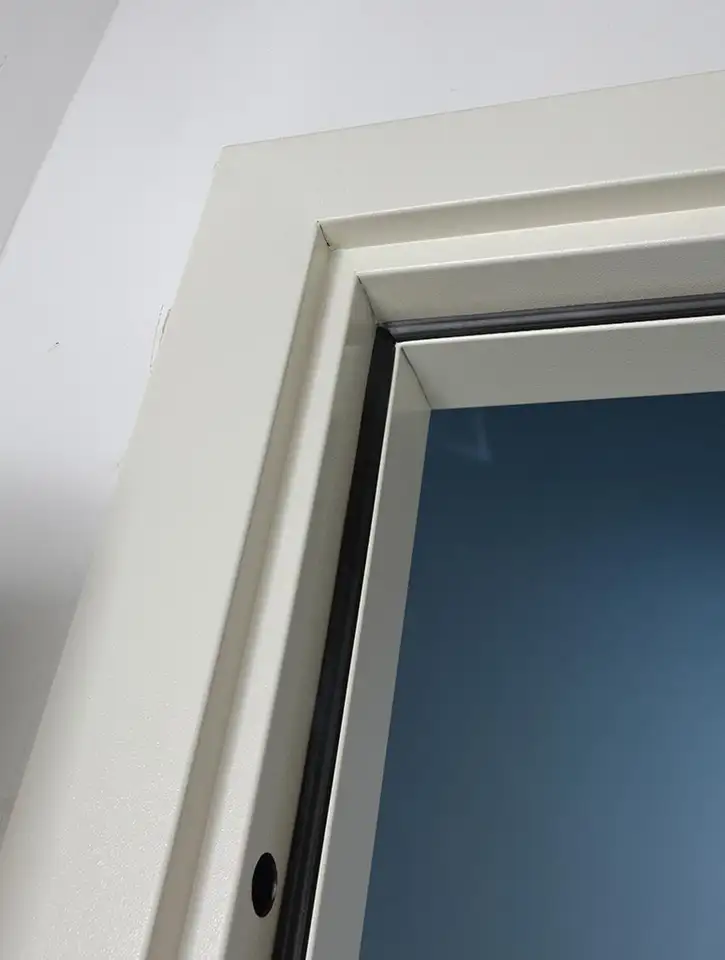

4. Door frame sheet is 2.0mm Galvanized Steel;
    Frame is around sealed with fire rated rubber seal;
Standard Frame Depth:165mm
5. Floor details:With stepped threshold or demountable threshold (optional)
6. Surface finish: Powder coated

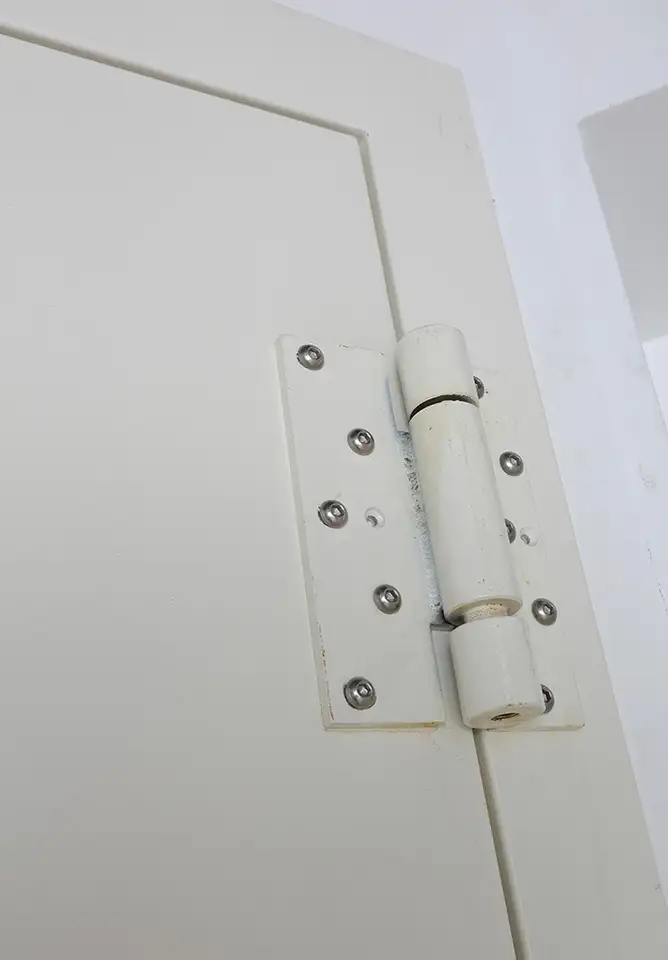

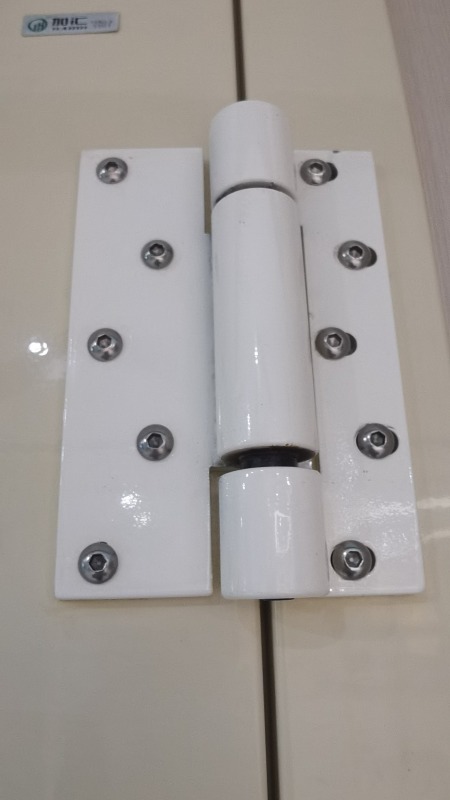

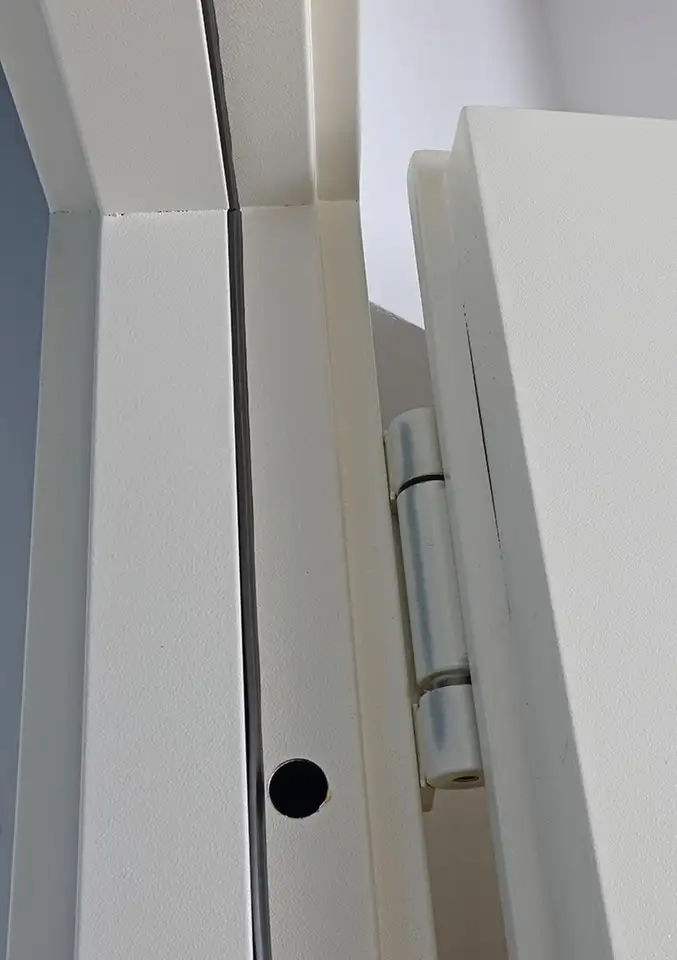

7. Hinges:Heavy-duty steel hinge

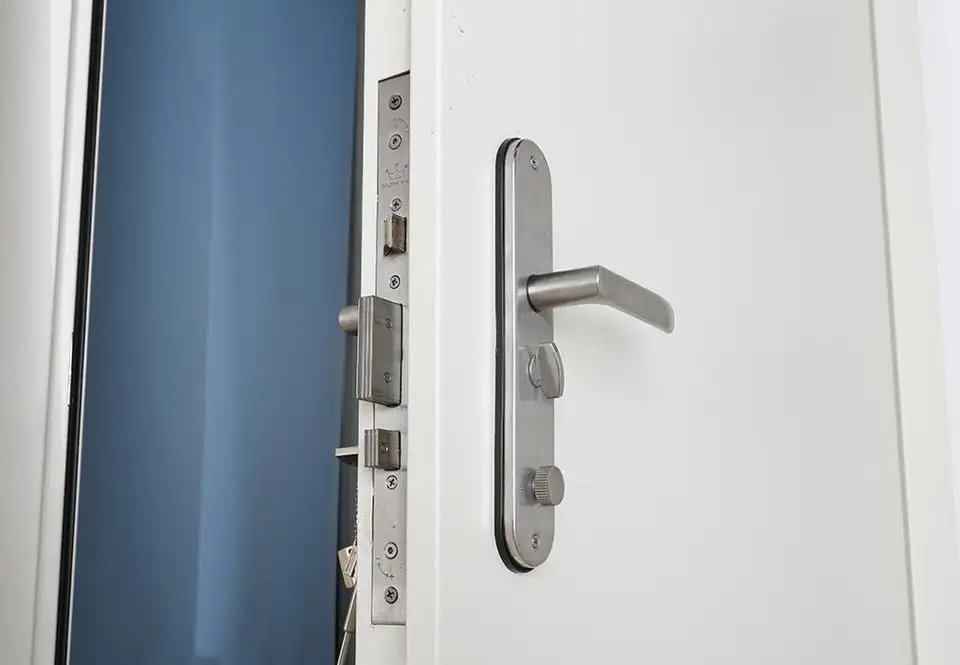

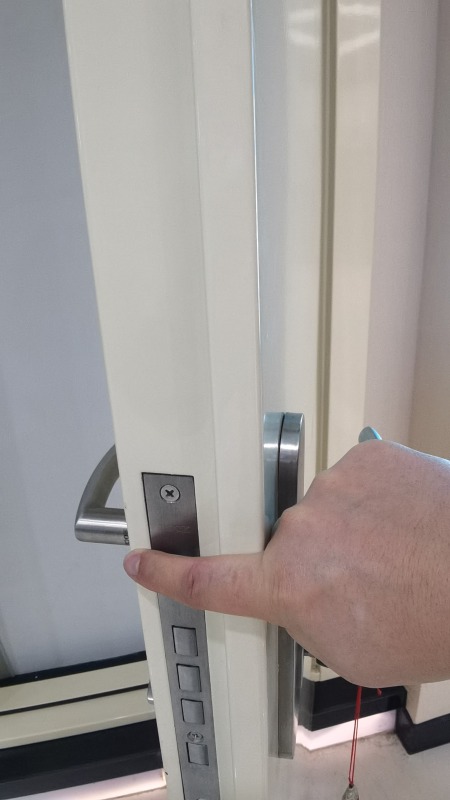

8. Lock: Blast Resistant Lock
9. Accessories:Expansion bolts & plastic covers for installation purpose

Specs & Details

Product Parameters

Door Material	Galvanized Steel
Size	customized per drawing
Door Panel Thickness	70mm or 2-3/4" inches
Frame Depth	standard 165mm or 6 1/2" inches, or customized per drawing
Door leaf sheet	16 Ga.(1.5 mm) galvanized steel sheet
Door frame sheet	14 Ga.(2.0 mm) galvanized steel sheet
Accessories	blast resistant lock, heavy duty hinges..
CAD Drawing	available before manufacture
Surface treatment	Powder coated or heat transfer printing with rich wooden color
Inner filling	1.5mm galvanized steel square pipe and honeycomb( The distance between two pipe is less than 150mm)
Certificate	ISO9001 & GB17565-2007
